Zen and The Art of Python `turtle` Animations • A Step-by-Step Guide

Python's `turtle` is not just for drawing simple shapes

We all need something calming from time to time. You have a choice. You can watch this animation video over and over again. Or you can go through the step-by-step tutorial to write the code. Then, you can watch your own animation over and over again.

---

This article differs from the ones I published on The Stack so far. Instead of digging underneath the surface of a specific programming topic, we'll have a gentle stroll through the steps needed to create a fun and calming animation. But there’s more to this project than meets the eye.

---

We'll start with a blank screen and build this animation one element at a time, controlling all the moving parts, the user interaction, and the speed of the animation. Visual projects such as this give us a unique insight into the progression of writing a program.

I've been known to use the turtle module from time to time. But if you never used this module before, there's nothing to worry about. As we progress through this article, I'll outline everything you need to know.

---

0 • The Ingredients of The Animation

Look at the video of the animation at the top of this article. You'll see:

• An arrow spinning in the centre of the screen

• Balls spawn from the centre at regular time intervals. The direction of travel of each ball is the same as the direction in which the arrow is pointing when it's spawned

• The rotation speed of the arrow can be altered by the user. One key increases the clockwise rotation speed. Another key increases the anticlockwise rotation speed

• The balls leave the screen when they move past the edges of the window. However, the user can turn on bouncing off the edges by pressing a key. Balls will then bounce back into the window until the user toggles the bouncing off again

Let's start building this animation.

1 • The Spinning Arrow

We'll start with an arrow spinning at a constant speed. But first, we'll need to figure out how to use the turtle module to draw on the screen. Luckily, getting to grips with this module is not too difficult.

You can start by creating an instance of the Turtle class:

copy code

You create a Turtle object. When you run the code, the Turtle is shown as an arrow pointing towards the right in the middle of the window. The final line, turtle.done(), keeps the program running until the window is closed:

Next, you can use the .left() method to rotate the Turtle object. Since you want the arrow to keep rotating continuously, you can add a while loop and rotate the arrow within the loop:

copy code

The turtle module automatically creates the window when you create a Turtle object. However, you can also create this explicitly. This will enable you to have more control over when things are drawn on the screen:

copy code

The arrow spins faster in the latest version compared to the previous one. This faster animation speed is due to adding window.tracer(0) when you create the screen and window.update() in the while loop. The first of this pair of method calls, window.tracer(0), prevents every change in the Turtle object's position or orientation from being drawn on the screen. The drawing on the screen is updated when you call window.update().

Since drawing images on the screen is time-consuming, choosing to update the display on the screen only once within each loop makes the drawing more efficient. Each iteration of the while loop represents one frame of the animation. Therefore, the window.update() call in the while loop updates the display once in every frame of the animation.

You've got a spinning arrow. Next, you can create a stream of balls that emerges from the arrow at the centre.

2 • The Stream of Balls

You'll use more Turtle objects for the balls, which spawn at the centre of the screen at regular time intervals. When a ball is spawned, its direction of travel matches the direction the arrow is pointing.

Let's look at the next steps you'll need:

• Create a list you'll use to store all the Turtle instances representing the balls

• Define a function to:

  • spawn a new ball

  • change its colour

  • set its position and direction to match the spinning arrow

  • append the instance to the list

• Start a timer and spawn a new ball once a time interval elapses

• Move all the balls forward in each frame

Let's translate these steps to code:

copy code

You define two more variable names, spawn_interval and ball_speed. You choose a random colour by creating a tuple of random red, green, and blue values. random.random() returns a random float between 0 and 1.

The spawn_ball() function accepts another Turtle instance as an argument. The new ball's position and orientation will mirror that in reference. You'll use the spinning arrow as an argument for this function.

The function performs the following actions:

• Creates a new Turtle instance and appends it to the list. You index the list using the -1 index in the function to access the last ball added to the list

• Changes the shape and colour of the object using the methods .shape() and .color()

• Reduces the size of the shape drawn to half its default size using .turtlesize()

• Raises the "pen" so that when the Turtle object moves, it doesn't draw a line

• Sets the ball's position to the position of reference, which is the spinning arrow. You use .setposition() to change the position of a Turtle and .position() to return the current position of a Turtle

• Sets the orientation of the ball to match the orientation of reference. .setheading() changes the orientation of a Turtle and .heading() returns the current heading of a Turtle

In the main animation loop, you add a couple of blocks:

• You call spawn_ball(spinner) when the time interval elapses. You reset the timer each time a new ball is set. The timer is set initially before the while loop

• You loop through the list of balls and move them all forward

When you run this animation, you'll see a stream of balls shooting out from the centre:

Cleaning up

As you let the animation run, you'll notice it will start slowing down. You're creating lots of balls and adding them to the list. The code still moves all the balls, even when they leave the screen! Therefore, you need to get rid of the balls when they leave the screen to avoid accumulating too many Turtle objects:

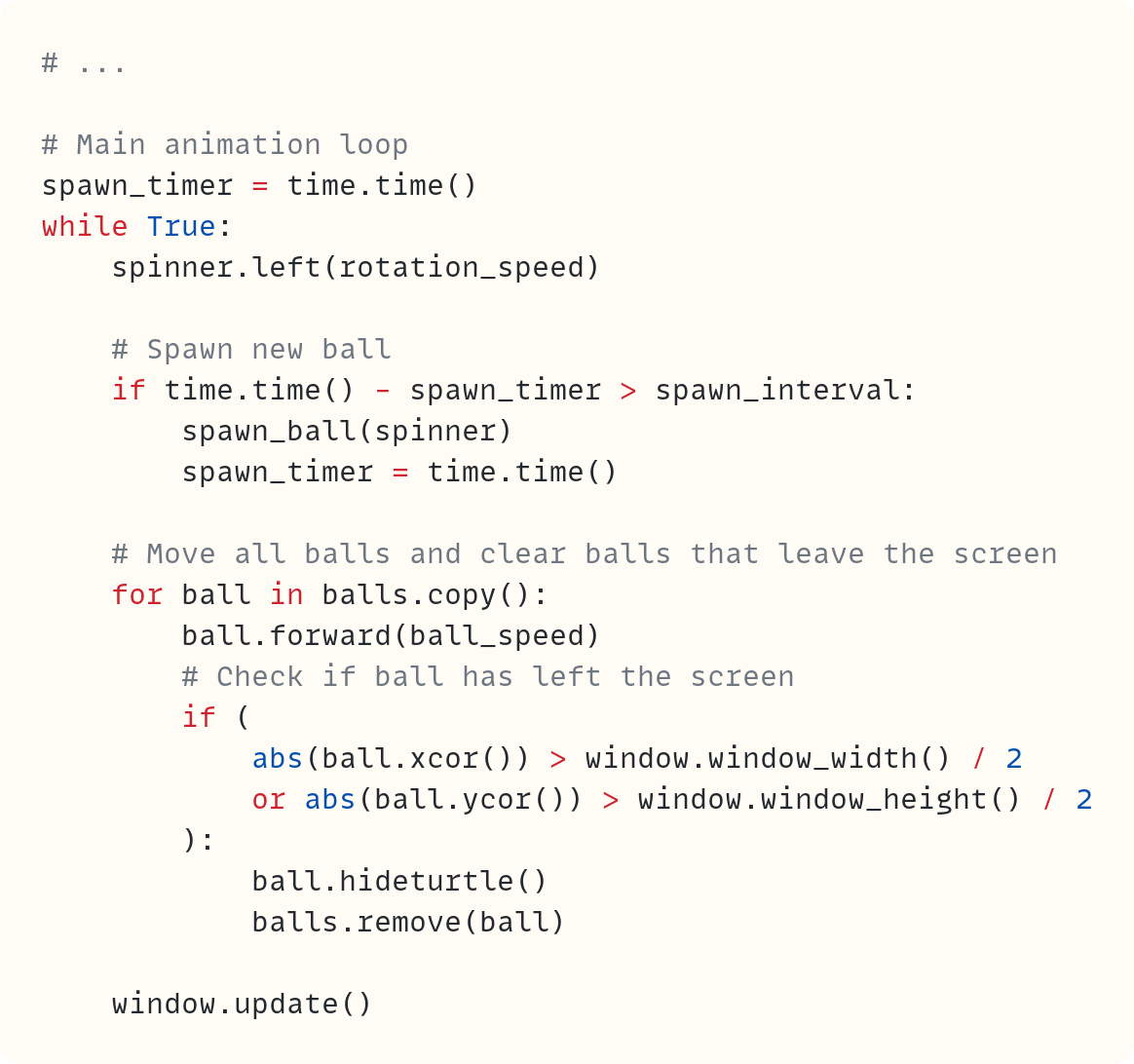

copy code

In the for loop block that iterates through the list of balls, you add an if statement to check whether the ball has left the screen. The built-in abs() function returns the positive value of its argument, whether it's positive or negative. You pass ball.xcor() or ball.ycor() to abs(). These methods return the current x- and y-coordinates of the ball. You compare these values to the edges using the width and height of the window.

If the ball leaves the screen, you remove the image of the turtle using .hideturtle() and remove the ball from the list of all balls. This makes a noticeable difference to the animation, which runs faster now without the slowing down you saw earlier if you let the animation run for longer.

You may have noticed another change in the code above. You're no longer looping through balls in the for loop but through a copy of it. This option is preferred now since you're removing items from the list within the loop, and we shouldn't mutate a list we're looping through to avoid missing any of the objects during iteration.

There's a bit more tidying up we could do. Even though you remove the balls from the list of balls, the objects are still present in the program. Over time, this takes up memory. Time to recycle.

Recycling Turtle objects

Instead of removing Turtle objects when they leave the screen and creating new Turtle instances each time you need a new ball, you can store the balls that leave the screen in a pool of balls and then use those balls when you need a new one.

By recycling the Turtle instances, you ensure you don't have excess Turtle objects. This method can sometimes increase efficiency further if creating new instances of an object is expensive. Let's implement this recycling regime:

copy code

You add a pool_of_balls list to hold inactive balls when they leave the screen. The spawn_ball() function now checks whether pool_of_balls is non-empty. If there are balls in pool_of_balls, one of them is removed from pool_of_balls and added to balls. If pool_of_balls is empty, a new ball is created.

In the while loop, when a ball leaves the screen, you append it to pool_of_balls. There's also a call to print() to output the length of three lists. Two of these lists are ones you've defined in your code. The third one is returned by turtle.turtles(). This list is maintained by the turtle module, and it's a list that contains all the turtles in the program. The number of Turtle objects in the third of these lists soon reaches a steady state, showing that the program doesn't create more Turtle objects than it needs!

The next step is to add user interaction to this animation to control the spinning arrow's speed of rotation.

3 • The Speed of Rotation

You can add user interaction by binding a function to a key using window.onkeypress(). You'll need to define a function which increases or decreases the spinning arrow's rotation speed:

copy code

Let's look at the changes to the code in this step:

• You add a new variable: increase_rotation_step

• You define two new functions: increase_anticlockwise_rotation() and decrease_anticlockwise_rotation()

• You bind these functions to the left and right arrow keys using window.onkeypress(). You also need to call window.listen() to be able to record keypresses during the animation

There's one other change you had to do. To modify the rotation speed within the functions, you couldn't use the global variable rotation_speed you had before since variables within the functions are local. Instead, you "convert" the global variable into a data attribute (sometimes called instance variable) for spinner, which is a Turtle object. Therefore, you use spinner.rotation_speed everywhere you need to refer to the speed of rotation.

The user can now control the speed of rotation using the arrow keys. This, in turn, affects the trajectory of the stream of balls:

Before adding more user interaction, you can change the colour of the balls after a time interval. You can add another timer to change the ball colours:

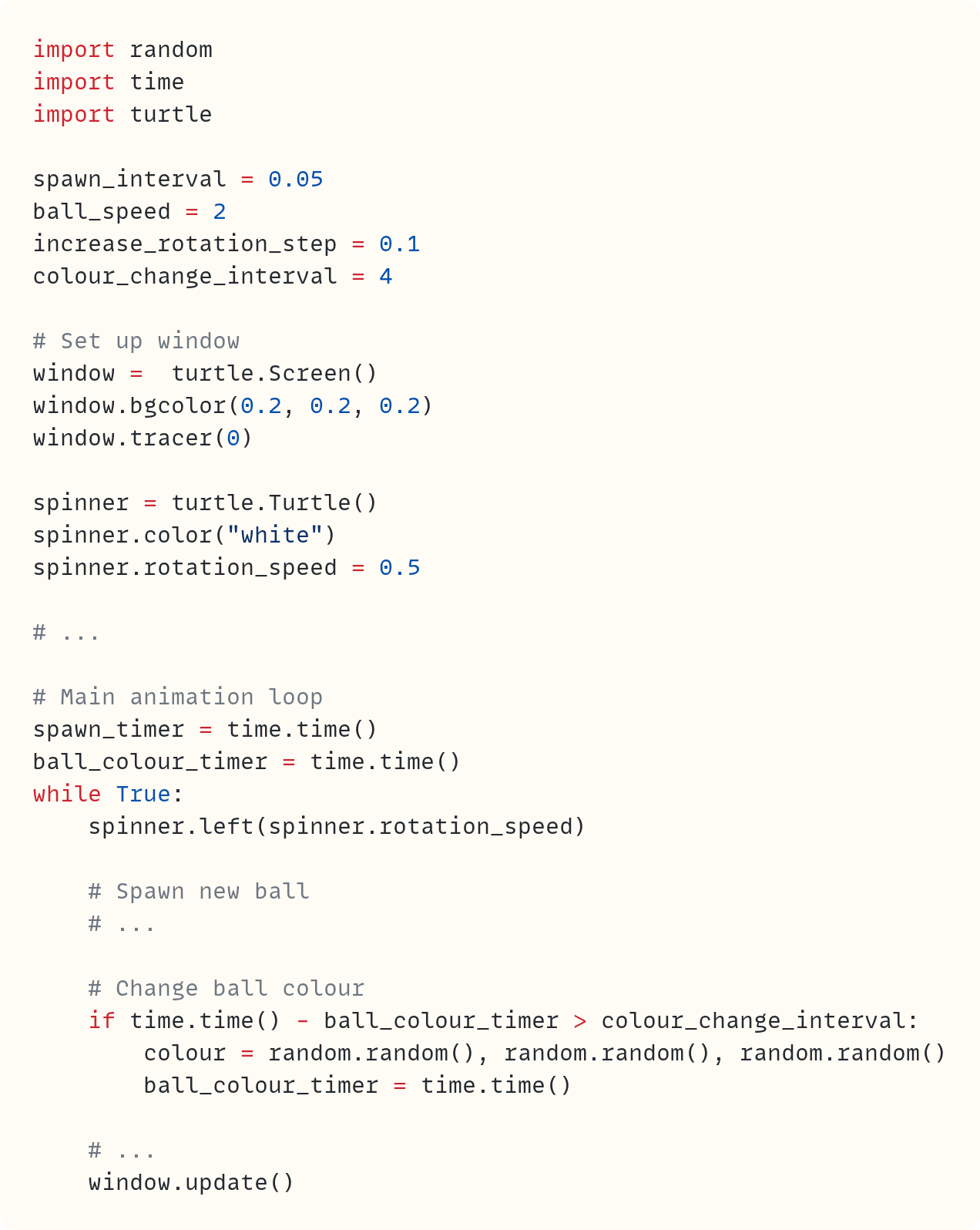

copy code

You also change the screen's background colour and the spinning arrow's colour—dark mode looks better!

In the next section, you'll add more user interaction in the animation by toggling the screen edges' behaviour.

---

I have a beginner’s textbook, written in the same relaxed and friendly manner as these articles. Available in paperback and ebook.

---

4 • The Bouncing Off The Edges

In the last section, you dealt with what happens when the balls leave the screen. Let's also add the option to turn the edges into "hard edges" so the balls bounce back into the screen when they hit an edge.

You'll need a flag to toggle between turning the hard edges on or off and a function to change the value of the flag when a key is pressed:

copy code

Let's look at the changes to the code:

• Create a data attribute (instance variable) window.bounce_on, which you set to False initially. You also show the status of the edges in the window's title bar

• Define toggle_bouncing() to change the value of the window.bounce_on flag and update the window's title bar. This function is bound to the space bar using window.onkeypress()

• Check whether window.bounce_on is True or False in each frame of the animation. If the flag is turned on, you change the ball's heading when it hits one of the edges. The arithmetic is different depending on whether the ball hits the top or bottom edges or the left or right edges

When you run the animation, you can now use the left and right arrow keys to control the speed of rotation and the space bar to toggle bouncing off the edges of the window:

You'll notice the speed of the animation changing depending on how many balls there are flying around. When you turn on bouncing off the edges, the balls are not recycled and remain within the list balls. This slows down the animation since there are more balls to move in each frame. When you open the edges again, balls start to escape from the window, and the animation speeds up again as the number of balls that need to move in each frame decreases.

In the final section of this article, we'll work on this issue to control the animation's speed.

5 • The Speed of The Animation

Each iteration of the while loop represents a frame of the iteration. However, at the moment, we have no control over how long it takes for the program to run one iteration of the while loop. Therefore, the time it takes for the animation to draw one frame is variable. One of the major bottlenecks is moving all the balls forward in each frame of the game. So, when you turn on the "hard edges", and the balls bounce back into the window, the animation slows down as there are more balls to draw in each frame.

You can time how long each frame of the animation takes by adding another timer. You could display the time of each frame. However, you'll get a better sense of what's happening if you average a number of frames. In this version, you'll show the average frame time from the last 100 frames of the animation:

copy code

You use a deque to keep the times of the last 100 frames since this allows you to efficiently add new values to the end of the deque and also remove values from the beginning. You set the deque's maximum length to 100, which means that old values are automatically removed from the deque when you add a new value if the deque is full.

When I run this animation on my computer, the average frame settles to 0.0084 seconds when the 'gates are open', and all the balls leave the screen. The animation starts to slow down when I press the space bar to turn on bouncing at the edges. On my computer, the average frame time was about 0.045 seconds after a minute and 0.080 after two minutes—that's about 10 times slower than at the beginning of the animation. However, once I pressed the space bar again, the balls could leave the screen, and the time per frame went down again.

Let's set a frame rate so every frame takes the same amount of time to render. The time per frame I got after two minutes of letting the animation run with the balls bouncing off the edges was around 0.045. This is just a bit faster than 20 frames per second (fps). So, I'll set the frame rate to 20 fps. At the end of each iteration of the while loop, you can pause the loop until the desired frame rate is reached. This approach means that the animation will run at a slower speed from the start, but the speed will not change. You can adjust the initial parameters spawn_interval, ball_speed, increase_rotation_speed, and spinner.rotation_speed to adjust the perceived speed of the animation:

copy code

The frame time is now steady and constant at 0.05 seconds right from the beginning. When you turn on bouncing off the edges, you won't see any slowing down of the animation. Note that, if you let the animation run long enough with bouncing turned on, the animation will slow down since the frame rate can slow down below your required 20 frames per second. We won't look at more complex techniques to deal with displaying the animation in this article.

This code produces the animation you saw at the beginning of this article.

Final Words

This brings us to the end of this step-by-step guide to creating the animation. We've explored how to deal with several moving parts—literally. Working on visual projects such as this animation gives us a unique perspective into the process of gradually building a computer program since we can clearly see the steps build up towards the final state.

The turtle module may be one of the simplest in the standard library. But this doesn't mean all projects that use this module are trivial. In this project, we've discussed frame rates in animations, reusing instances, using multiple timers, and we even used the deque data structure to efficiently add and remove items from both ends.

Still, I'll return to "normal service" from the next article, digging underneath the surface of particular Python topic. But I may revisit the turtle module at some point, too!

Code in this article uses Python 3.11

---

---
